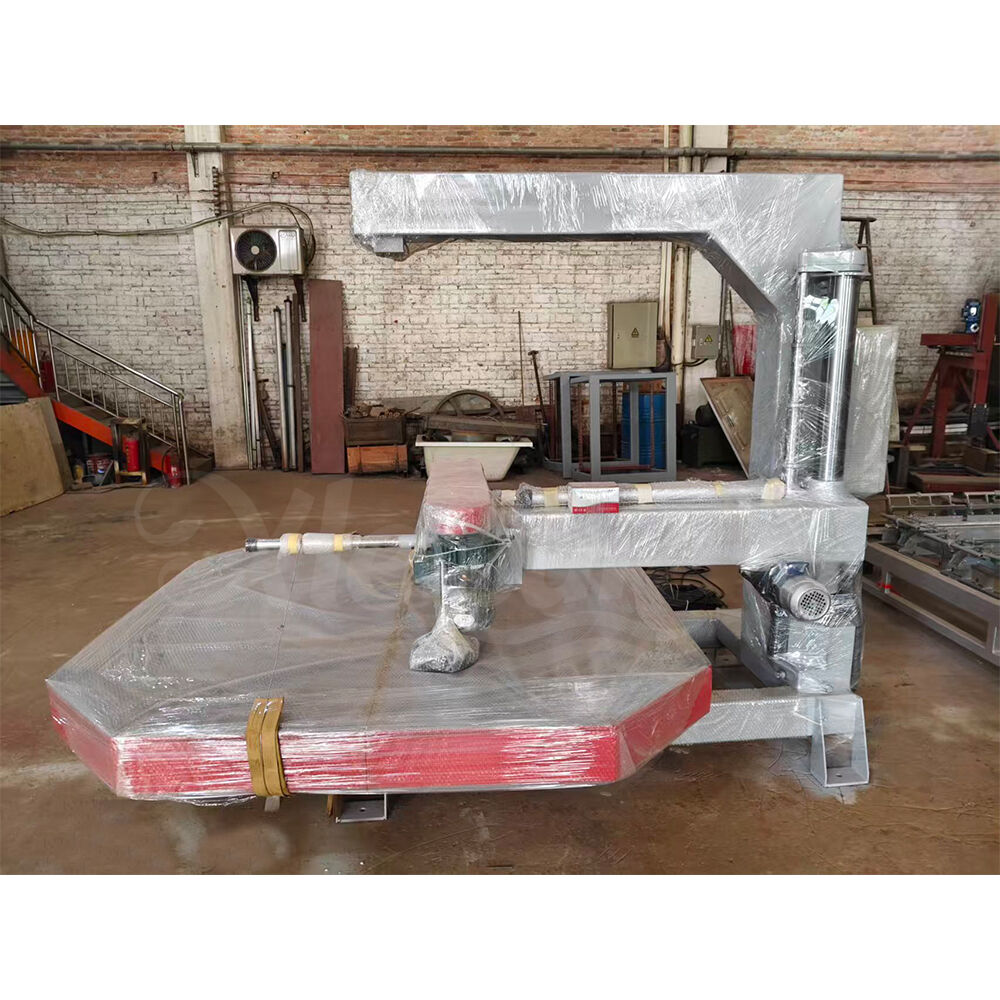

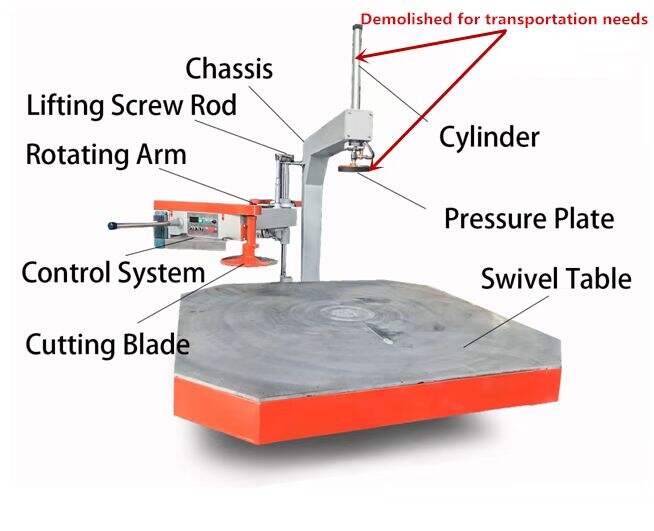

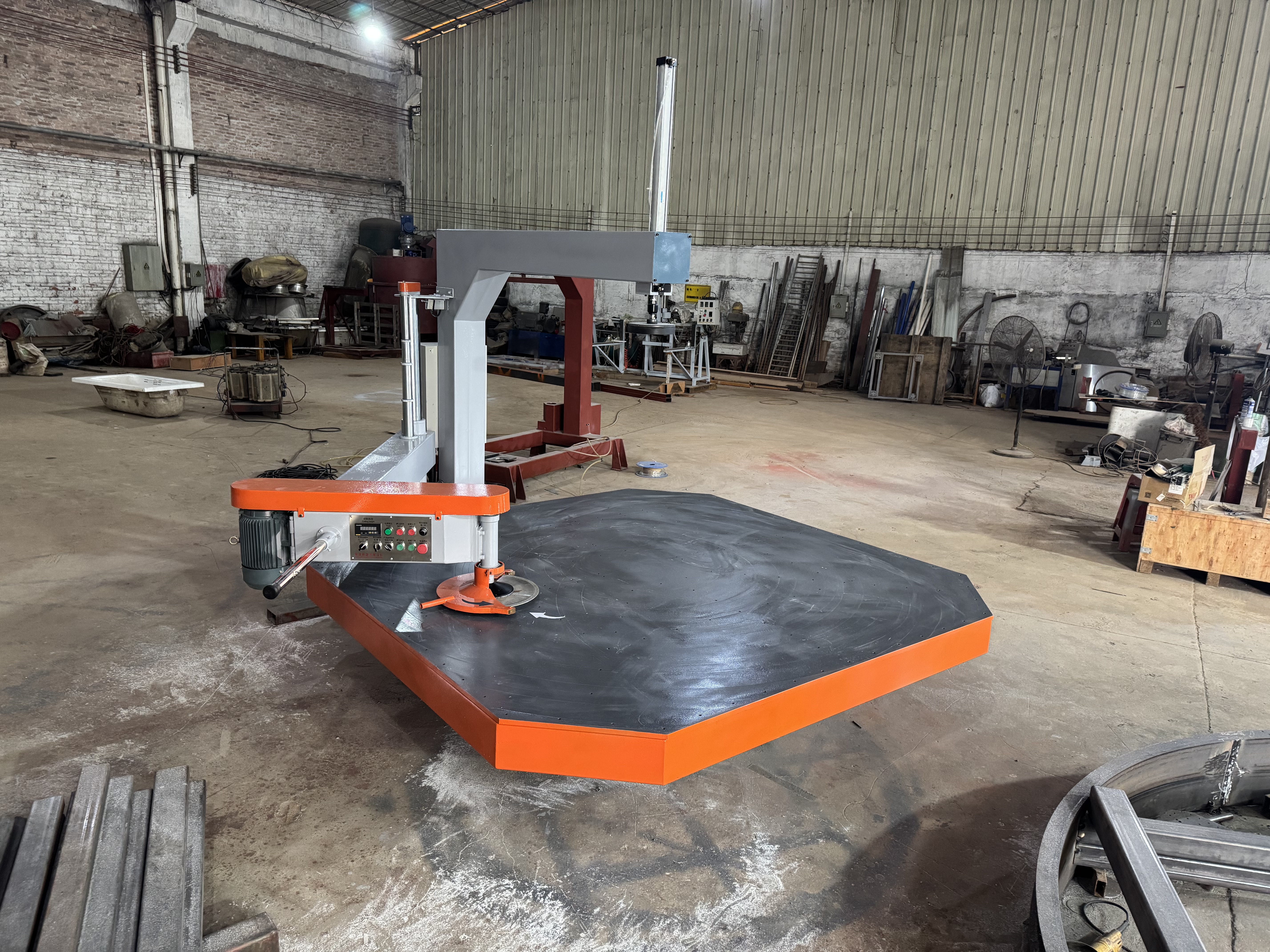

Edge Sawing Machine for Tub Shell

Price7500-8500 usd / set

Product name:

Edge Sawing Machine for Tub Shell

MOQ

1 sets

Frame material

Carbon steel / Stainless steel

Function

Trims and smoothes the edge of the spa tub shell for a flat and clean finish.

  • Related products
Parameter

Product detail

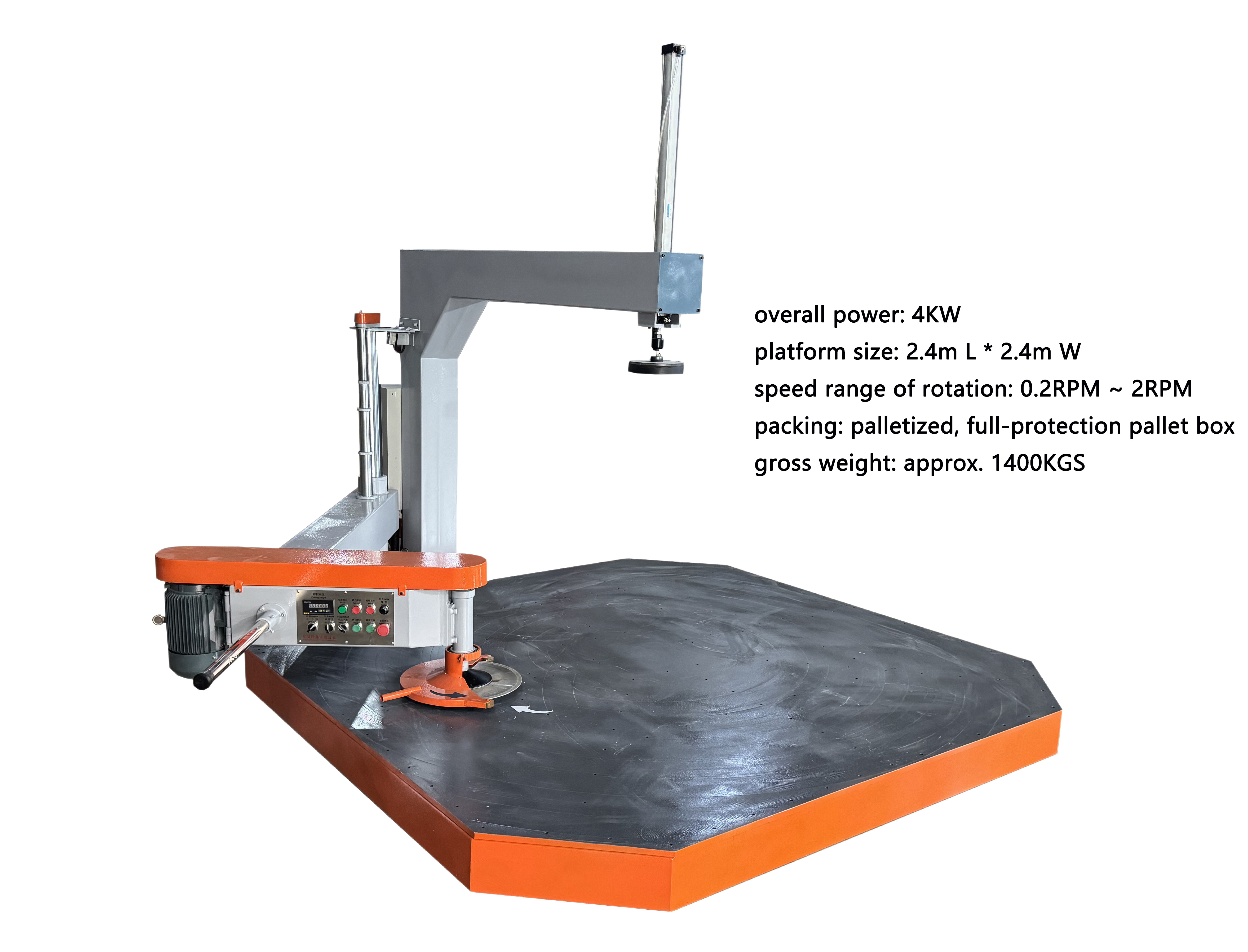

Overall power 4 KW
Platform size 2.4m L * 2.4m W
Turntable motor 0.55KW
Saw blade motor 3.0KW
Lifting motor 0.37KW
Max turntable load 150KG
Clamp stroke 260mm-1050mm
Clamp driving cylinder SC50*800
Control mode Manual control mode
Max cutting height 700mm
Speed range of rotation 0.2 RPM~2 RPM

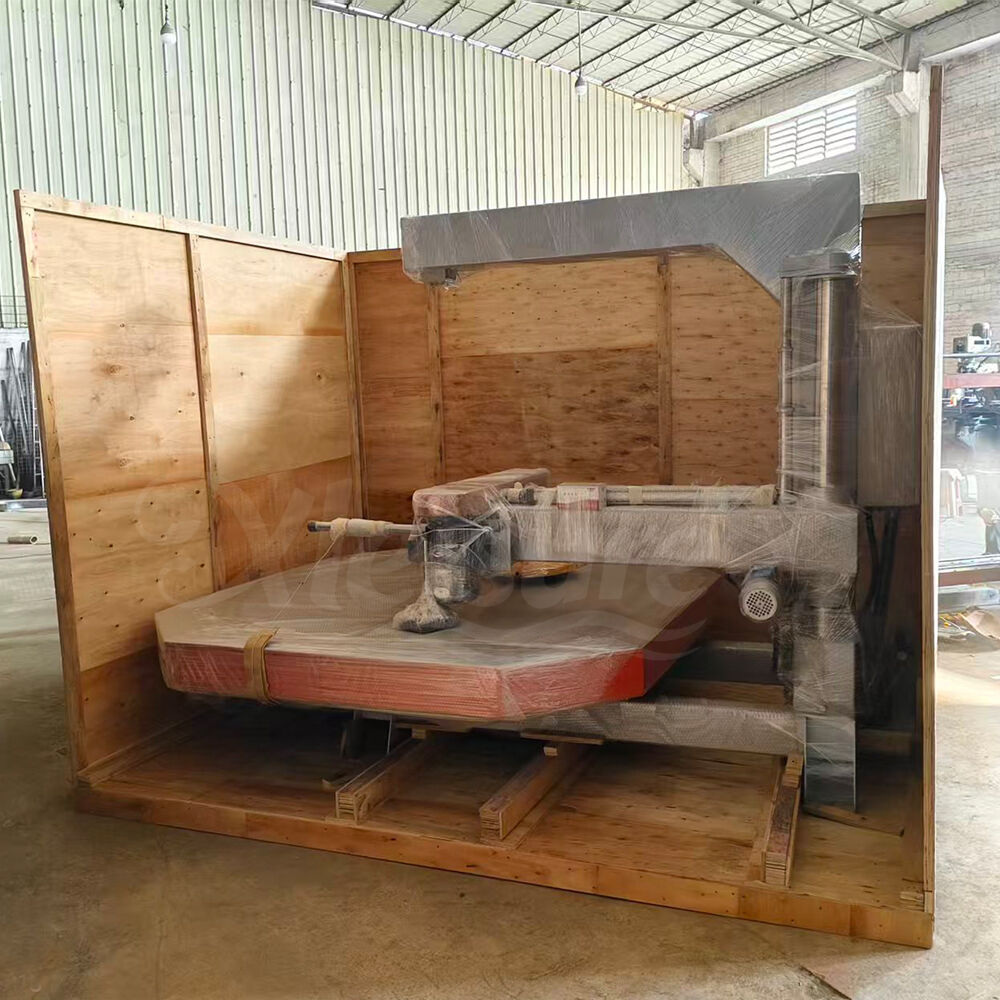

Packing Palletized,full-protection pallet box
Gross weight approx, 1400 KGS

Our advantage

This edge sawing machine features high cutting precision and stable performance, ensuring the edges

of the spa tub shell are smooth, flat, and burr-free after processing. It operates with low noise and strong stability, greatly improving production efficiency while reducing labor intensity. The user-friendly design makes operation simple and safe, suitable for long-term continuous work. With durable structure and reliable quality, it is widely used for trimming and polishing acrylic bathtub and spa shell edges, helping to achieve a neat and high-quality finish for each product.


Other equipment

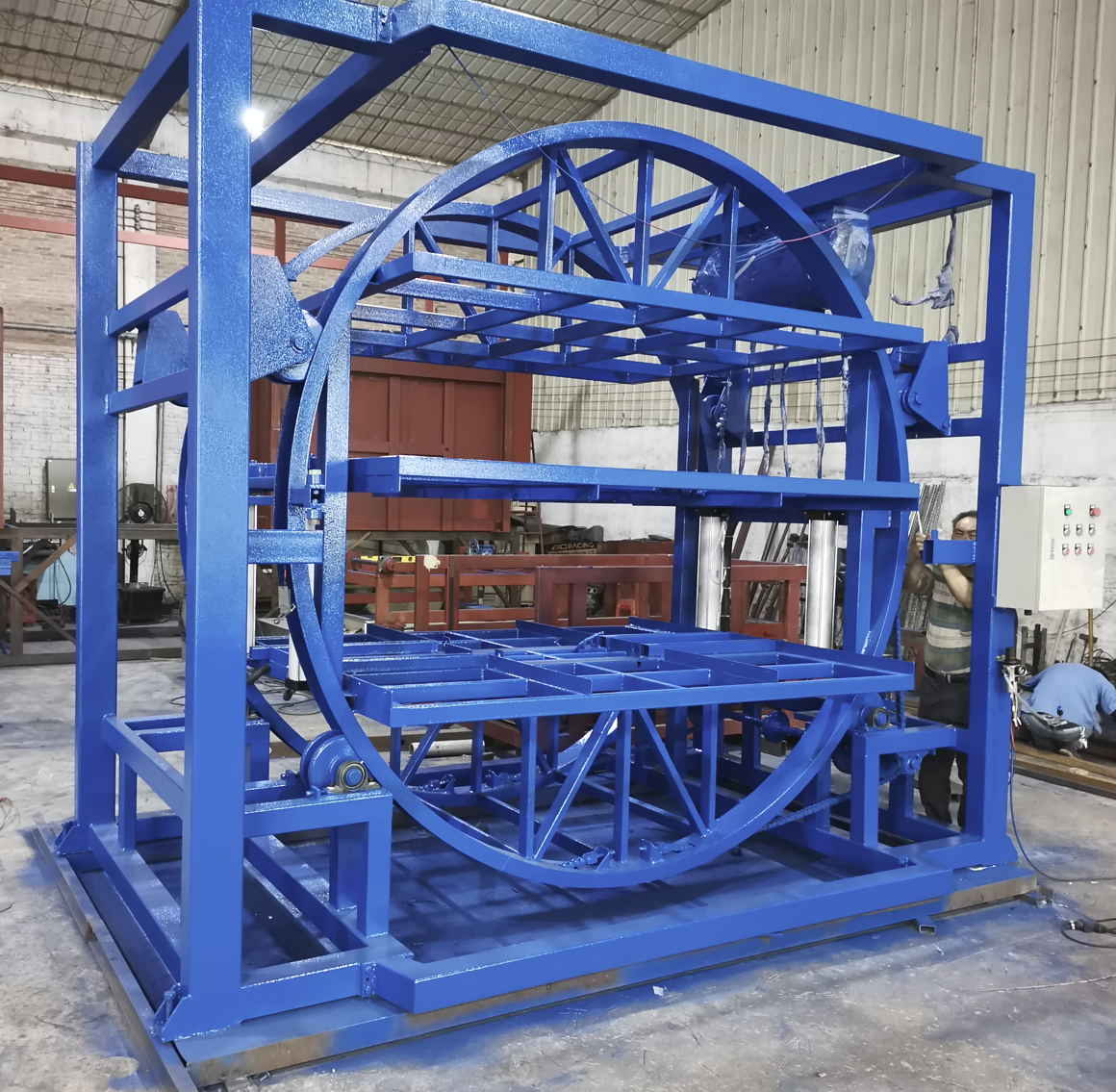

✅remove the hot tub water efficiently & effortlessly ;
✅turn over hot tub, to drain the water completely;
✅rotate 360°, to flip the spa upside down;
✅hanging at any position, hovering at any angel, for the convenient cleaning;
✅maximum applicable hot tub size: 235cm L * 235cm W;
